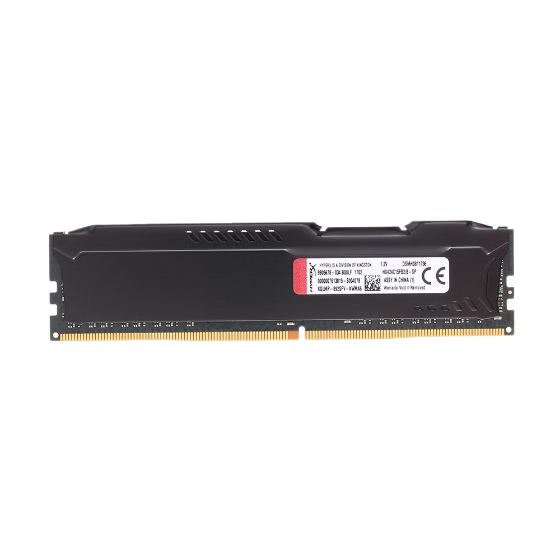

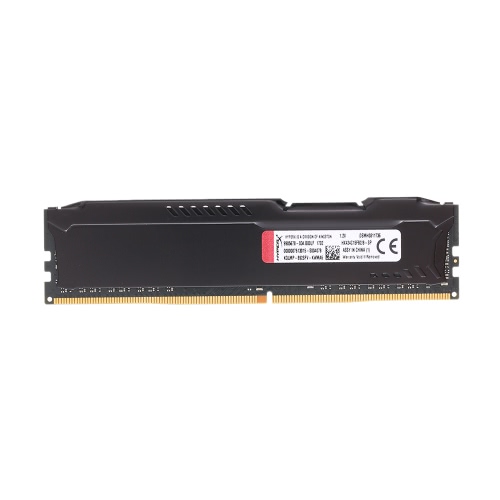

HyperX HX424C15FB2/8 is a 1G x 64-bit (8GB) DDR4-2400 CL15 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module. Each module supports for Intel Extreme Memory Profiles (for Intel XMP) 2.0. Each module has been tested to run at DDR4-2400 at a low latency timing of 15-15-15 at 1.2V.
Features:
Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals.
Low-power auto self refresh (LPASR).
Data bus inversion (DBI) for data bus.
On-die VREFDQ generation and calibration.
On-board I2 serial presence-detect (SPD) EEPROM.
Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS).
High speed DDR4-2400, 1.2V operating voltage.
Specifications:
Brand: Kingston
Model: HX424C15FB2/8
Memory type: DDR4
Operating voltage: 1.2V
Frequency: 2400
Storage capacity: 8G, 16G (Optional)
CL(IDD): 15 cycles
Row Cycle Time (tRCmin): 46.75ns(min.)
Refresh to Active/Refresh: 350ns(min.)
Command Time (tRFCmin)
Row Active Time (tRASmin): 29.125ns(min.)
Maximum Operating Power: TBD W
UL Rating: 94 V - 0
Operating Temperature: 0℃~+85℃
Storage Temperature: -55℃~+100℃
Item size: 13.3 * 3.4 * 0.7cm / 5.23 * 1.33 * 0.27in (L * W * H)
Item weight: 34g / 1.2oz
Package size: 19.4 * 16 * 2cm / 7.63 * 6.29 * 0.78in (L * W * H)
Package weight: 77g / 2.73oz
About Capacity:
Hard disk/flash memory vendors are using decimal arithmetic: 1MB=1000KB, 1G=1000MB calculated, but the operating system is using binary arithmetic: 1MB=1024KB, 1GB=1024MB. So there are some differences between display capacity and nominal capacity of hard disk/flash memory products. However, this is allowed to exist. Please do not doubt his authenticity.
8G=approximately 7.5GB, 16GB=approximately 14GB, 32GB=approximately 29GB, 40GB=approximately 37GB, 60GB=approximately 55GB, 80GB=approximately 74GB, 120GB=approximately 111GB, 160GB=approximately 149GB, 250GB=approximately 232GB, 320GB=approximately 298GB, 500GB=approximately 465GB, 640GB=approximately 595GB, 1TB=approximately 930GB
Package List:
1 * DDR4
