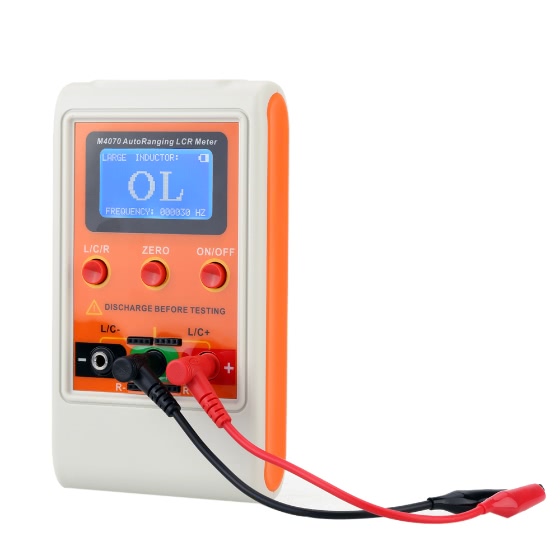

This M4070 Auto Range LCR meter is auto-ranging component tester, can drive up to 500 KHz, suitable for small value capacitor and inductor measurement. It provides very stable and high resolution measurement up to 5 digits. This LCR meter can measure 0.00pF to 100.00mF capacitance, 0.000uH to 100.00H and 0.00Ω to 10.000MΩ. This meter is using two technique measurement, LC oscillation and RC oscillation. LC is much suitable for small value measurement and RC for high value capacitance.
Features:
Fully auto-ranging designed, drive up to 500 KHz.
High resolution, up to 5 digit display, most finest resolution: 0.01pF, 0.001uH, 0.01R.
High stability and measurement range for L/ C/ R.
Large LCD display with backlight, easy to read.
USB PC program, can take record and pass and fail component sorting function.
USB charging with rechargeable battery inside.
Notice:
Discharge capacitor before testing.
Please don't connect under testing device during power on, it will affect the initialization.
Specifications:
Color: Orange
LCR Testing Parameter: Main Parameter: L/C/R
Testing Frequency: C: 10 to 500Khz
L: 10 to 360Khz
Testing Method: Auto Select LC and RC Oscillation
Calibration: Power on Auto Calibrate with Internal Reference Capacitor
Testing Voltage: ~1.5Vrms
Best Tolerance: L: 1% + 1 Digit
C: 1% + 1 Digit
R: 0.5% + 1 Digit
LCD Update or Testing Time (vary on component value): <3/s, (e.g.100mF Capacitor < 30s)
Range Selection: Automatically
Zeroing: Open / Short Circuit
Terminal: Mini- USB (Virtual Com Port)
Display Range: C 0.00pF ~ 100.000mF(pF/nF/uF/mF)
L 0.000uH ~ 100.000H(uH/mH/H)
Hz (LC Oscillation Frequency) 0 ~ 900000Hz
(s) (RC Constant Time) 0.000 ~ 99.999
LCD Display: 128x64 Dot Matrix, with Backlight
Fuse Protection: 200mA
Charging terminal: Mini-USB (500mA)
Battery: internal 3.7V Li-polymer
Number of Testing Terminal: Main 3, Secondary 2
Reading Display: Max. 99999
Item Size: Approx 17 * 9.8 * 3cm / 6.7 * 3.8 * 1.2in
Item Weight:
Approx 255.1g / 9.0oz
Package Size:
Approx 19 * 14 * 4.4cm / 7.5 * 5.5 * 1.7in
Package Weight:
Approx 377g / 13.3oz
Package List:
1 * Capacitance Meter
2 * Test Clips
1 * USB Wire
1 * User Manual
