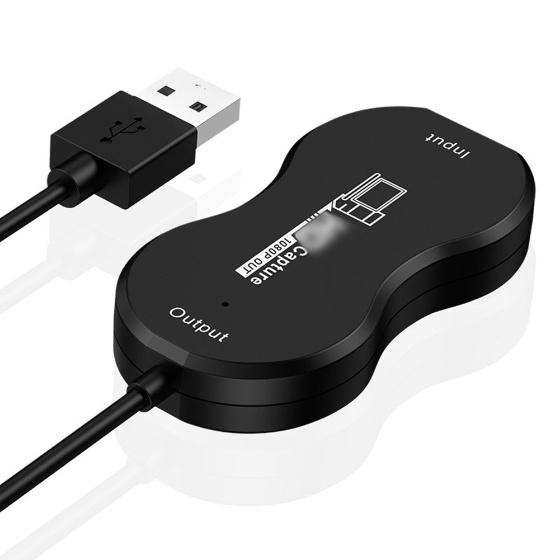

This USB2.0 capture card can capture both High Definition Multimedia Interface video and High Definition Multimedia Interface audio at the same time, and can transmit the audio signal to a computer or smart phone for preview and storage. It is suitable for high-definition acquisition, teaching recording, medical imaging, etc.
Support maximum input resolution up to 1080P.
Support maximum output resolution up to 1080P.
Support 8/10/12 bit color depth.
When supporting the use of standard AWG26 cables, the input transmission distance is up to 15 meters (resolution of 1080P and below).
Support most acquisition software, such as VLC, OBS, Amcap, etc.
Support Wins, Android and MacOS.
Comply with USB video UVC specification and USB audio UAC specification.
No need for external power supply, small size and easy to carry.
HDTV resolution: maximum input support 4K 3840*2160@30Hz
Video input format: 8/10/12 bit color depth
Video output mode: YUV, JPEG
Video output resolution: maximum output resolution 1920*1080@30Hz
Support audio format: LPCM
Input cable length: ≤15 meters, AWG26 High Definition Multimedia Interface standard cable
Maximum working current: 0.4A/5V Direct current
Operating temperature range: -10℃~55℃
Item size: 71.6 * 36.2 * 12.6mm / 2.8 * 1.4 * 0.5in
Item weight: 26g / 0.9ounce
Package size: 80 * 40 * 30mm / 3.1 * 1.6 * 1.2in
Package weight: 50g / 1.8ounce
1 * USB2.0 Capture Card
1 * User Manual
