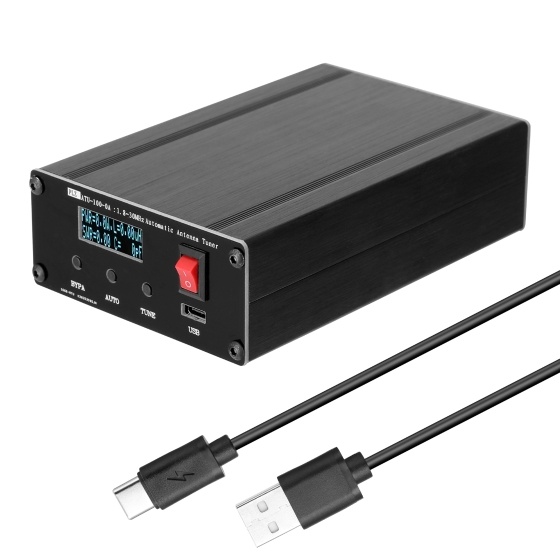

  • ATU100 1.8-55Mhz Automatic Shortwave Antenna Tuner USB Type-C Rechargeable with 0.96inch OLED Display
ATU100 1.8-55Mhz Automatic Shortwave Antenna Tuner USB Type-C Rechargeable with 0.96inch OLED Display

ATU100 1.8-55Mhz Automatic Shortwave Antenna Tuner USB Type-C Rechargeable with 0.96inch OLED Display

Ship From:

  • China Warehouse

Dispatch:Usually will be shipped inbusiness dayshours

Shipping: Loading...
Sorry, it seems that there are no available shipping methods for your location.Please contact us for further assistance.

Loading...

Ship to

Anguilla
: china

QTY:

Wholesale Inquiry

Special discount has ended

Please note each user for only 1 item(s)

Buyer Protection

  • Full Refund If you don't receive your order
  • Full or Partial Refund , If the item is not as described Learn more >
The shortwave automatic antenna tuner contains a set of 7 capacitors and 7 inductors, which allows it (with the largest configuration) to work effectively in a wide frequency band, overlapping the amateur radio HF band of 1.8-55MHz. Built-in lithium battery, 4.2V, 600mAh, you can use Type-C  cable to recharge it. Equipped with 0.96inch OLED display, you can see the data clearly. Automatically tuned and do not need control wires, suitable for most radio stations. You can have a try.

Features:
The shortwave automatic antenna tuner contains a set of 7 capacitors and 7 inductors, which allows it (with the largest configuration) to work effectively in a wide frequency band, overlapping the amateur radio HF band of 1.8-55MHz.
Made of quality material, wear resistance, with stable and reliable performance.
Built-in lithium battery, 4.2V, 600mAh, you can use Type-C  cable to recharge it.
Equipped with 0.96inch OLED display, you can see the data clearly.
Automatically tuned and do not need control wires, suitable for most radio stations.
One button to on/off, easy to use very convenient.
Equipped with indicator light, it will turn on while recharging.

Instructions:
Connect the radio, ATU antenna tuner and antenna.
For the first use, please set the output power of the radio or power amplifier between 20-30W, or the high-power tuning can easily damage the antenna tuner.
Set the radio mode, use FM mode.
Choose the antenna band to use, use 20-30W power in FM mode, press the radio PTT, observe the PWR and SWR of ATU antenna tuner.
ATU button TUNE use: short press (less than 1 second) ATU button, it is in reset state, long press (more than 1 second) ATU button is in tuning state.
If the SWR display of the ATU antenna tuner in the transmitting state is >2.0, it means that the antenna is detuned.

Specifications:
Name: ATU100 Tuner
Material: metal
Color: black
Display: 0.96inch OLED display
Charge: USB Type-C cable
Battery: 1 * lithium battery, 4.2V, 600mAh (included)
Working frequency: 1.8-55MHz
Maximum current consumption: 400mA
Maximum working power: 100W
Maximum possible measurement power: 150W
Minimum power required to starts tuning: 5W
Minimum possible measurement power: 0.1W
Measurement step for power up to 10W: 0.1W
Measurement step with power higher than 10W: 1W
Power measurement accuracy: 10%
Maximum installation inductance: 8.53uH
Minimum installation inductance step length: 0.05uH
Maximum installation capacitance: 1869pF
Minimum installation capacitance step length: 10pF
Item size: 150 * 88 * 38mm / 5.91 * 3.46 * 1.50in
Item weight: 300g / 10.58ounce
Package size: 200 * 120 * 50mm / 7.87 * 4.72 * 1.97in
Package weight: 400g / 14.11ounce

Packing List:
1 * ATU100 Tuner
