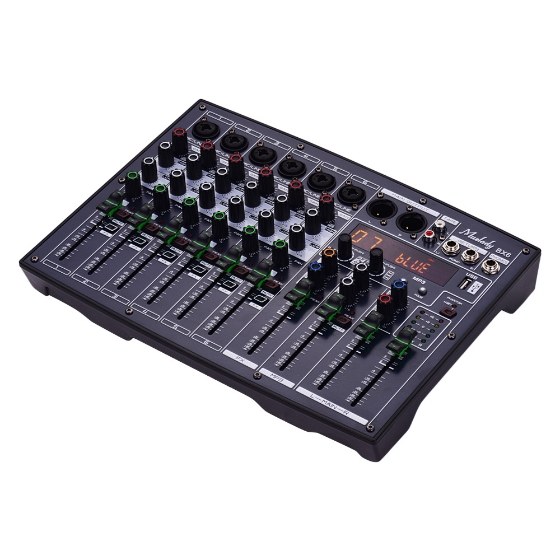

Muslady BX6 Compact 6 Channels Mixer ( Item#: I5194EU )

Features:
Muslady BX6 6-channel mixing console with USB port, record from MAIN OUT and reserve to thumb drive.
6 Inputs with gold plated XLR both MIC and balanced LINE inputs; each input channel with Mute, FX function, PEAK LEDs; every mono signal assignable to main mix, control room/ headphone outputs.
Rich functions -- having MP3/ Recording function, with 2-band fixed EQ on mono channels, a set of Return inputs and a set of Stereo output.
Ultra-low noise discrete MIC preamps; built-in 48V phantom power supply, press the button to add to all the XLR microphone inputs of the mixer.
With 16 DSP multipurpose echo/effect, and 60mm high precision faders, fit for daily use or live performances at most places.

Specifications:
Brand: Muslady
Model: BX6
Input --
Input Impedance: MIC 2k ohm Balanced; Line 10k ohm Balanced
Input Gain: MIC continuously variable from 0dB to +50dB; Line-Mono Channel continuously variable from -15dB to +35dB
Maximum Input Level: MIC +22dBu; Line (Mono Channel) +22dBu
Insert Send Impedance: 10k ohm unbalanced
Insert Return Level/ Max.: -10dBu/ +22dBu
CMR at 1 kHz Line (20Hz-20kHz): ＞60dB
Frequency Response: MIC to Mix 20 Hz-20kHz +/-3dB
Signal/ Noise Ratio (20Hz-20kHz): MIC EIN ref. 150ohms - 117dBu

System Noise (20Hz-20kHz) --
Summig Noise: -90dBu (24 channels routed with faders down)
Line to Mix Noise: -86dBu (24 channels routed at 0dB, pan center)
Distortion at 1kHz: MIC to insert (+30dB unity gain, +20dBu output) ＜0.009%; Mix to Mix (+30dB unity gain, +20dBu output) Typ 0.03%
Crosstalk at 1kHz: Channel to channel ＞-80dB; Mix to Mix ＞-80dB
Fader Attenuation: ＞100dB

Output (nominal signal level mic -50dBu to 0 dBu -Line 0 dBu) --
Output Inpedance: All line outputs 120 ohm balanced
Inset Send Impedance: 120ohm unbalanced
Insert Send Level/ Max: +22dBu
Insert Return Impedance: 10k ohm unbalanced
Insert Return Level/ Max: +22dBu
Maximum Output Level Master Outputs on XLR: +28dBu
All Outputs on 1/4" Jacks: +22dBu
Headphones: +22dBu/ 600ohm

Main Mix Section --
HI-shelving: +/-15dB@12kHz
MID HI-bell (STEREO): +/-12dB@3kHz
MID-bell (MONO): +/-12dB frequency range 100Hz-8kHz
MID LOW-bell (STEREO): +/-12dB@500Hz
Bass-shelving: +/-15dB@80Hz
Hi Pass Filter Slope: -18dB/ Oct.@75Hz

Power Supply: 110/220V, 50~60Hz
Item Size: 32.2 * 23.4 * 5.2cm / 12.68 * 9.21 * 2.05in
Item Weight: 1704g / 60.11oz
Package Size: 40 * 30 * 10.5cm / 15.75 * 11.81 * 4.13in
Package Weight: 2384g / 84.1oz

Package List:
1 * Mixing Console
1 * Charging Adapter
1 * User Manual
