14-LED Flashing Light System for 1/10 1/8 RC Car Compatible with Traxxas Hsp Redcat Rc4wd Tamiya Axial Scx10 D90 Hpi ( Item#: RM13249 )

Features:
This 14-LED Flashing Light System is suitable for Traxxas Hsp Redcat Rc4wd Tamiya Axial Scx10 D90 Hpi 1/10 and 1/8 RC car, with this accessory, make your car more cool and realistic.
The IC light control board and the receiver have real-time intelligent linkage and fast response, and wish 5 kinds of light display: Emergency Flashing, Solid Headlights, Flashing in Turn, Strobe Lights and Flashing, and All Lights Off.
Dual Power Supply Mode: From the receiver or from the Lipo battery (independent power supply). The intelligent power supply detection program is built in the controller to detect whether there is an external power supply when the power is on. when it is detected that there is an external power supply connected and the voltage is higher than the power supply voltage of the receiver, the IC lights control panel uses the external supply. In contrast, the IC lights control panel uses a receiver power supply.
Steering-CH1/Throttle-ch2 signal input positive and negative switching function: The IC lamp control board is designed with the function of switching the positive and negative input signals, which can be switched through the skipped nap.
All connectors' mode is PH1.25 for DIY modification.

Specification:
Production size: 58 * 35 * 8 mm
Operating Voltage: DC 5-8.4V
For car scale: 1/10 or 1/8 RC cars
Length of lamp: 47.3 cm (Approx.)
Weight: 68g
Package weight: 89g
Package size: 70*70*50 mm

Package List:

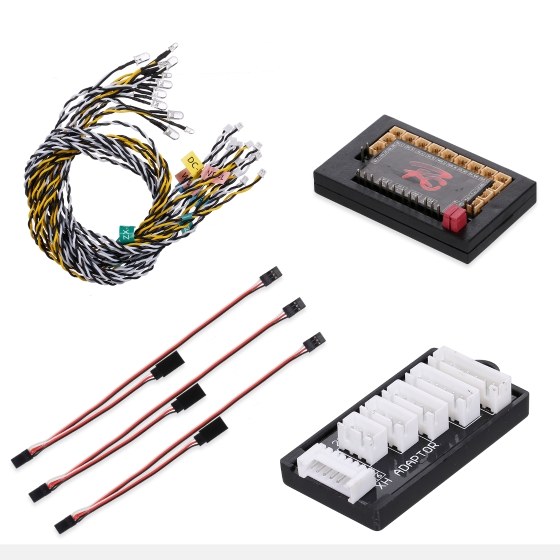

1 x 14-LED Flashing Light System Kit

Special functions:
1. Turn On/OFF Emergency Flashing
 Steer to right to the max and keep at max for 3 seconds.
 Emergency Flashing is turned ON, once again to turn OFF.
2. Turn On/OFF Headlights
 Steer to the left to the max and keep at max for 3 seconds. Headlights are turned ON, once again to turn OFF.
3. Turn On/OFF Flashing in Turn
 Steer to right to the max and keep at max for 5 seconds. Flashing, in Turn, is turned ON, once again to turn OFF.
4. Turn On/OFF Strobe Lights and Flashing
 Steer to the left to the max and keep at max for 5 seconds. Strobe Lights and Flashing is turned ON, once again to turn OFF.
5. Turn On/OFF All Lights
 Steer to right to the max and keep at max for 7 seconds. All Lights are turned OFF.
 Steer to the left to the max and keep at max for 7 seconds. All Lights are turn ON.

WARMING:
Please make sure all connections of wire and plugs are correct, any short circuit will cause LED Light burned.
DO NOT exceed the maximum voltage of 8.4v or equivalent 2s Lipo, or LED Light will be burned.
Power off before nay connections of wire and plugs.

Notice:
Enabling a special function requires that the throttle channel(CH2) be held in the middle. Otherwise, it has no effect.
When the jumper in the CH1 direction switches the direction, operating the left and right directions will also switch the direction accordingly.
There could be a few deviations due to manual measurement or slightly color difference as the result of the shooting scene. Thank you for your understanding.
