Overview:

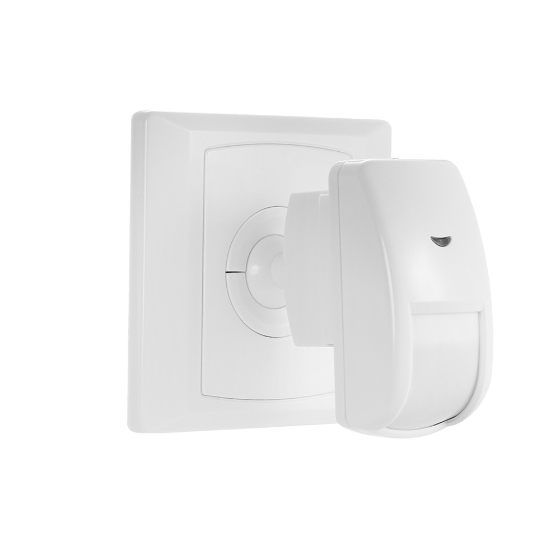

This product is a curtain passive infrared detector, exquisite design, easy installation, can be mounted on the top of window/door frame with matched 86 type box bracket to prevent window/door intrusion. Fit for the locations of the living room window, office window, entrance door, etc. Imported high-end infrared sensor, SMT chip technology, anti-EMI & anti-RFI design, temperature compensation, pulse count optional, LED switch selectable functions, it could work with wired alarm host.
Features:
*Intelligent logic to prevent false alarms. SMT chip technology, anti-EMI & anti-RFI design. Anti-tamper alarm function to enhance anti-damage.
*With 360 degree swivel and 120 degree tilt bracket, the PIR Detector can be installed on the wall and ceiling with appropriate angle.
*Automatic temperature compensation, adjustable pulse count.
*LED ON/OFF optional, better concealment.
*Alarm output: NC/NO optional.
PIR Sensor Specifications:
Working voltage: 9V-16V
Working current: ≤18mA
Detection distance: 6-8m (25℃)
Curtain Detector angle: 15°
Alarm output: NO/NC (500mA/100V DC)
Tamper output: NC (50mA/30V DC)
LED indicator light: ON/OFF optional
Installation method: Mounting on Top of Window/Door Frame
Installation bracket: 86 box bracket (Not included)
Item Size: Approx. 7.3 * 3.7 * 3.8cm(L*W*H)
Item Weight: Approx. 30g / 1oz
Bracket Specifications:
Model: 86 Type box bracket
Material: ABS
Color: White
Suitable PIR Sensor: Mainly for PA-83B / PA-80D
Mounting Place: on a table, ceiling, wall, etc.
Mount Size: Approx. 86 * 86 * 60mm (L*W*H)
Mount Weight: Approx. 62g / 2.2oz
Package Information:
Package Size: Approach. 12 * 12 * 5.6cm / 4.7 * 4.7 * 2.2in
Package Weight: Approach. 140g / 4.9oz

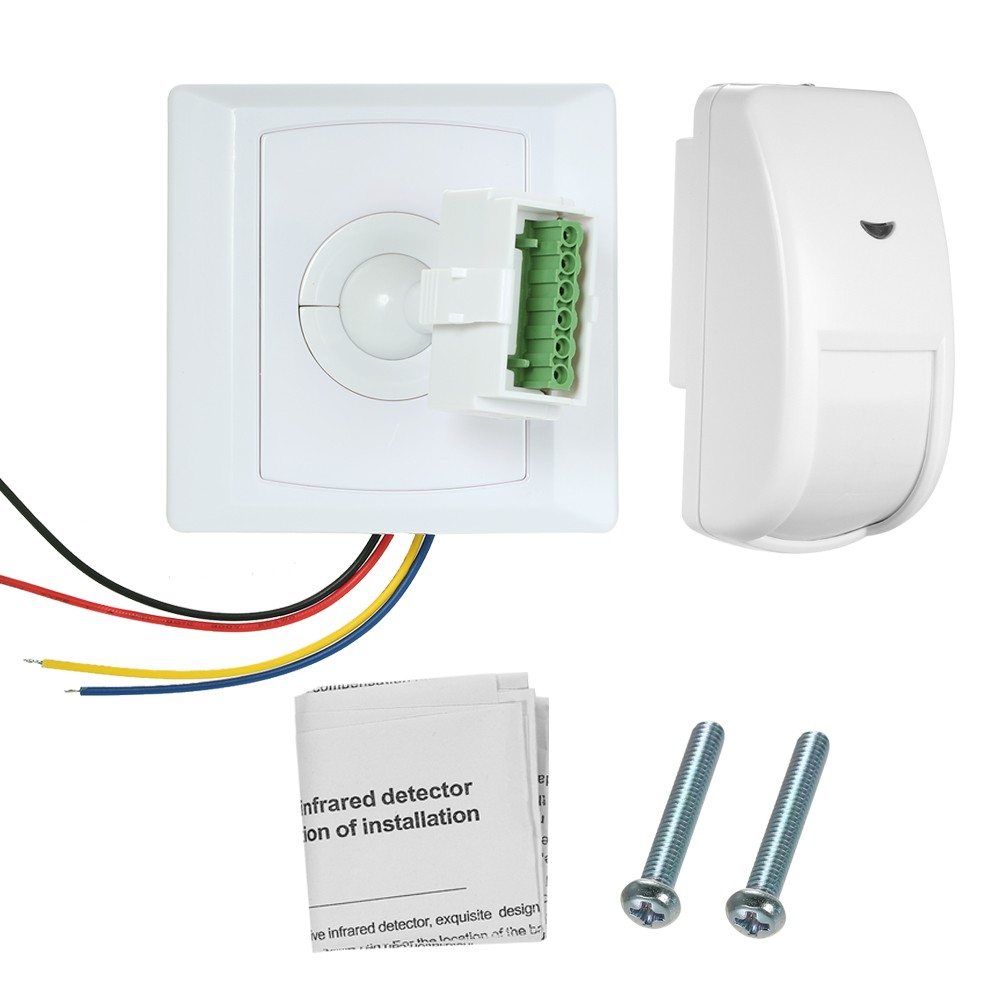

Package List:
1 * Wired PIR Motion Sensor
1 * 86 Type Box Bracket
1 * Bag of Mounting Screws
1 * User Manual
